All-in-one serialization, aggregation and rework in a single compact station

Semi-automated item serialization combined with case and optional manual pallet aggregation, plus built-in rework handling—delivering print, inspect and aggregation functionality in one compact, mobile footprint.

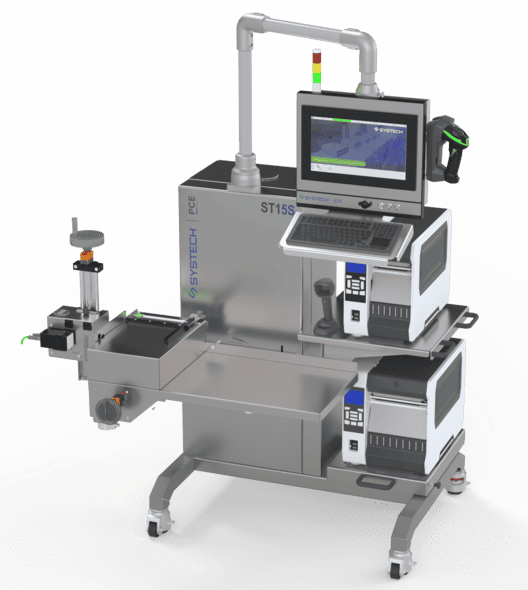

The ST15S is a standalone manual aggregation and rework station built for small batch operations and space-constrained environments. It combines semi-automatic item serialization with case and optional manual pallet aggregation in a single machine. Now, lines that would otherwise need multiple connected stations to run print, inspect and aggregate functions can do it all in one footprint. An ergonomic, mobile design with single-screen operation makes the ST15S suited to any pharmaceutical packaging environment.

Why Choose ST15S

Small batch and low-volume packaging lines often can’t justify the footprint, cost or complexity of multiple dedicated stations, yet still need full serialization, aggregation and rework capability without compromising compliance or accuracy.

The ST15S solves these challenges by combining serialization, case/pallet aggregation and rework into one compact, mobile station. It replaces the need for:

Multiple dedicated stations that don’t make sense for small batch or low-volume runs
Additional footprint in already space-constrained packaging areas
Manual rework and exception handling that’s disconnected from the main line
Inflexible equipment that can’t adjust to varying product sizes or print positions
Limited mobility when lines need to be reconfigured or relocated

Key Highlights

Supports aggregation from carton to bundle, case and pallet, with optional manual pallet aggregation
Integrated serialization unit guides print heads and smart camera along a precision linear axis to print, verify and capture every serialization code automatically
Serialized items are automatically aggregated to the current case, with automatic case detection and intelligent packing mode activation
Integrated In-Lot or Post-Lot rework functions handle exceptions without disrupting the main line
Compact, mobile footprint available with leveling feet or casters and a simple aggregation user interface
Bottom printer tray extends for easy service, minimizing downtime

Want to learn more about the ST15S?

Specifications – ST15S

Specification	Description
Packaging Level	Carton, Case & Pallet
Code Specification	1D, DM, QR
Throughput	Semi-Automated (serialization) Manual (aggregation)
Reading Devices	Smart camera, Wired scanner and Wireless scanner
Printers	Thermal Ink Jet Printer & 2 Thermal Transfer (Max)
Dimensions (H x W x D)	1967 x 1485 x 1160 mm (77.4” x 58.5” x 45.7”)
Compatible Software	UniSeries® or PLM
Max. Case Size (LxWxH)	600mm x 400mm x 400mm (23.6” x 15.7” x 15.7”)

Operational & Compliance Benefits

Performance Area	ST15S Advantage
Serialization and Aggregation Accuracy	Consistent data integrity from item to case: Integrated smart camera prints, verifies and captures every serialization code automatically
Operator Efficiency	Reduced training time and faster changeovers: Simple, single-screen aggregation interface with automatic case detection
Line Integration & Flexibility	Fits any small batch or space-constrained line: Compact, mobile design with leveling feet or casters, left/right product flow and adjustable mechanisms for varying product sizes
Exception Handling	No separate rework workflow needed: Built-in In-Lot or Post-Lot rework functions keep exception handling on the same station
Maintenance & Uptime	Minimal disruption to production: Extendible bottom printer tray for easy servicing,
Compliance Confidence	Complete serialization and regulatory readiness: Full support for UniSeries or PLM serialization software
