Semi-automated Pack-By-Layer with case label inspection

The ST16 provides an out-of-the-box solution to enable rapid case aggregation and case label inspection. The intuitive Pack-By-Layer software maximizes productivity while the ergonomic design allows for ease of use.

Intuitive Pack-By-Layer or Count-By-Layer software integration

All items packed into a layer of a package are read by the vision system with one high-resolution image.

Remote focus for automated layer inspection

Enhance operator efficiency and ease of use with remote focus.

Scalable aggregation scenarios

Supports carton, bundle or bottle aggregation to case. Option for pallet aggregation with handheld scanner and pallet label printer.

Ergonomic design with pack table tilt option

Height-adjustable table with automatic detection of erected case and initiation of packing.

Mehr erforschen Track & Trace-Lösungen 🡢

Übersicht

Specifications - ST16 Multi-Aggregation Station

Specification	Description
Packaging Level	Case
Product Size	600mm x 400mm x 400mm
Code Specification	1D, 2D, QR
Durchsatz	Semi-Automated
Flow	Left or Right
Lesegeräte	1 High Res Camera, 1 SMC Camera, 1 Wireless Scanner
Printers	2 Thermal Transfer (Max)
User Interface	15.6″ (16:9) or 15″ (4:3)
Material	Stainless Steel
Dimensions	1187mm (W) x 2207mm (H) x 1190mm (D)
Software	UniSeries, PLM
Product Compliance	CE, ETL, CB, FCC, RoHS

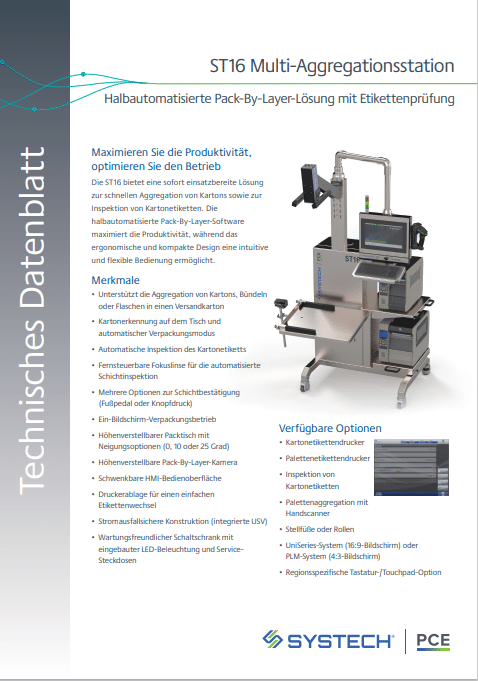

Datenblätter

ST16 Manual Multi Aggregation

Laden Sie dieses informative Datenblatt herunter, um mehr über diese flexible Kofferaggregation zu erfahren.

Software flexibility

The ST16 supports both UniSeries or PLM software

Automatic detection and ergonomic design

Height adjustable table with automatic detection of erected case and initiation of packing. Tilt options (0, 10 or 25 deg)

Optional pallet aggregation

Optional pallet label printer and handheld scanner for pallet label inspection.

Compact design

The ST16 is easily integrated into any workflow with a compact footprint – 1187mm wide.

Globaler Service-Support

Unser globales Netzwerk von Serviceexperten bietet schnellen Remote- und Vor-Ort-Support. Unser umfassendes Serviceangebot unterstützt Sie dabei, die Einhaltung gesetzlicher Bestimmungen, höchste Leistung- und maximale Anlagenverfügbarkeitsziele über den gesamten Lebenszyklus Ihrer Produktinspektionsgeräte zu erreichen.
